Forging Press
Forging Press Machines form the shape of the metal by compressive press. It changes the shape and size, but it does not the volume of the part. Usually, it will be used one the products, such as car wheel, bushing, and gear, etc. Forging Press Machines works with hydraulic pressure to exert enough force to press the material into the requested product. According to the positioned press, the Forging Press Machines are divided into vertical type or horizontal type.
<Forging Press Presented by CYC>
<Vertical Forging Press Specification>
Following Verticle Forging Press Specification is only for your reference. For more information, please kindly download our catalog.

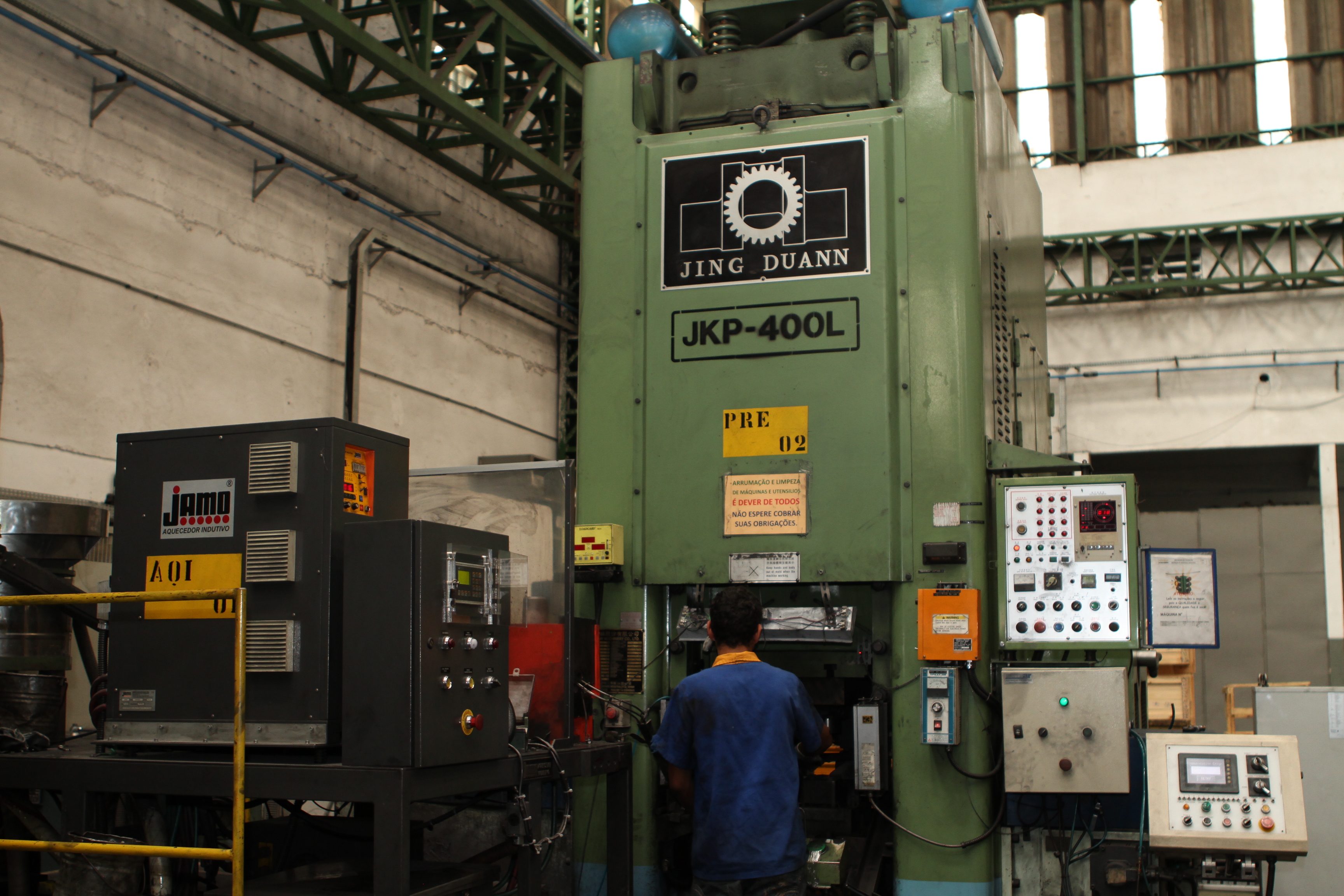

JKP Kunckle Joint Cold Forging Press
| Model | Capacity (tons) | Stroke of Ram (mm) | Adjustment of Ram (mm) | Number of Stroke (SPM) | Work Number of Stroke (SPM) | Shut Height (mm) | Rated Tonnage Point (mm) | Main Motor (KW x P) | Press Weight (kg) | Press Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| JKP-400M | 400 | 180 | 15 | 40 | 12 | 600 | 8 | 37KWx4P / 30KWx6P |
35000 | 1800x3215x4980 |
| JKP-400L | 400 | 180 | 15 | 40 | 12 | 620 | 8 | 37KWx4P / 30KWx6P |
38000 | 2003x3234x5000 |
| JKP-650L | 650 | 200 | 15 | 35 | 12 | 807.5 | 8 | 55KWx4P / 45KWx6P |
48000 | 2311x3678x5530 |
| JKP-800L | 800 | 220 | 15 | 35 | 12 | 850 | 8 | 75KWx4P / 55KWx6P |
68000 | 2668x4238x6300 |
| JKP-1000L | 1000 | 250 | 15 | 30 | 12 | 957.5 | 8 | 75KWx4P / 55KWx6P |
92000 | 2965x4588x6080 |

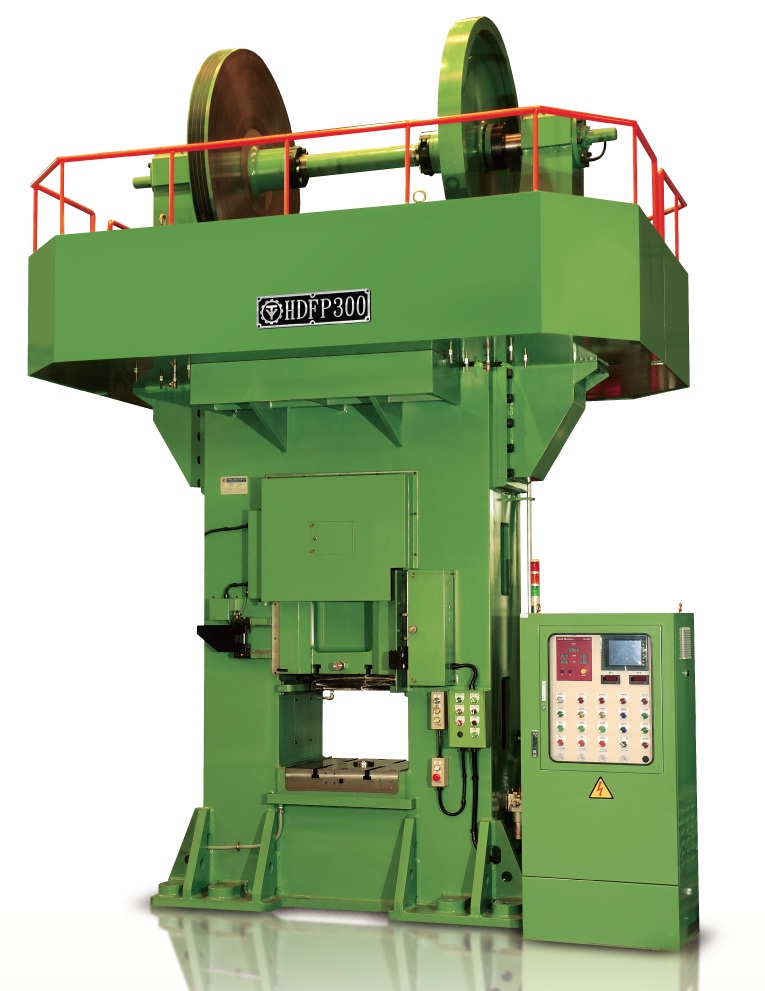

FP High Speed Hot Forging Press
| Model | Capacity (tons) | Stroke of Ram (mm) | Adjustment of Ram (mm) | Number of Stroke (SPM) | Work Number of Stroke (SPM) | Shut Height (mm) | Rated Tonnage Point (mm) | Main Motor (KW x P) | Press Weight (kg) | Press Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-400 | 400 | 175 | 10 | 100 | 18 | 505 | 5 | 30KWx8P | 29500 | 3360x2600x4655 |
| FP-600 | 600 | 200 | 10 | 95 | 18 | 650 | 5 | 37KWx8P | 40000 | 3500x2730x5100 |
| FP-800 | 800 | 250 | 10 | 85 | 16 | 650 | 5 | 45KWx8P | 52000 | 3985x2987x5520 |
| FP-1000 | 1000 | 250 | 10 | 85 | 16 | 800 | 5 | 55KWx8P | 72000 | 4185x2910x5935 |
FP-G High Speed Hot Forging Press
| Model | Capacity (tons) | Stroke of Ram (mm) | Adjustment of Ram (mm) | Number of Stroke (SPM) | Work Number of Stroke (SPM) | Shut Height (mm) | Rated Tonnage Point (mm) | Main Motor (KW x P) | Press Weight (kg) | Press Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-600XG | 600 | 200 | 10 | 70 | 18 | 750 | 6 | 45KWx6P | 50000 | 3425x3405x5280 |
| FP-800XG | 800 | 250 | 10 | 60 | 18 | 850 | 6 | 55KWx6P | 65000 | 3665x3655x5810 |
| FP-1000XG | 1000 | 250 | 10 | 60 | 18 | 950 | 6 | 75KWx6P | 90000 | 3960x3975x6150 |
| FP-1300XG | 1300 | 280 | 10 | 60 | 16 | 950 | 6 | 90KWx6P | 105000 | 4200x4200x6675 |
| FP-1600XG | 1600 | 300 | 10 | 50 | 16 | 1100 | 6 | 110KWx6P | 140000 | 4410x4435x7800 |
FP-X High Speed Forging Press
| Model | Capacity (tons) | Stroke of Ram (mm) | Adjustment of Ram (mm) | Number of Stroke (SPM) | Work Number of Stroke (SPM) | Shut Height (mm) | Rated Tonnage Point (mm) | Main Motor (KW x P) | Press Weight (kg) | Press Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-600X | 600 | 200 | 10 | 95 | 18 | 750 | 6 | 37KWx8P | 46000 | 3300x2790x5280 |
| FP-800X | 800 | 250 | 10 | 85 | 18 | 850 | 6 | 45KWx8P | 60000 | 3630x3010x5810 |
| FP-1000X | 1000 | 250 | 10 | 85 | 18 | 950 | 6 | 55KWx8P | 82000 | 3840x3225x6145 |
| FP-1300X | 1300 | 280 | 10 | 80 | 18 | 950 | 6 | 75KWx8P | 100000 | 4100x3450x6675 |
| FP-1600X | 1600 | 300 | 10 | 65 | 18 | 1100 | 6 | 75KWx12P | 130000 | 4320x3505x8100 |
FP-XG High Speed Forging Press
| Model | Capacity (tons) | Stroke of Ram (mm) | Adjustment of Ram (mm) | Number of Stroke (SPM) | Work Number of Stroke (SPM) | Shut Height (mm) | Rated Tonnage Point (mm) | Main Motor (KW x P) | Press Weight (kg) | Press Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-600XG | 600 | 200 | 10 | 70 | 18 | 750 | 6 | 45KWx6P | 50000 | 3425x3405x5280 |
| FP-800XG | 800 | 250 | 10 | 60 | 18 | 850 | 6 | 55KWx6P | 65000 | 3665x3655x5810 |
| FP-1000XG | 1000 | 250 | 10 | 60 | 18 | 950 | 6 | 75KWx6P | 90000 | 3960x3975x6150 |
| FP-1300XG | 1300 | 280 | 10 | 60 | 16 | 950 | 6 | 90KWx6P | 105000 | 4200x4200x6675 |
| FP-1600XG | 1600 | 300 | 10 | 50 | 16 | 1100 | 6 | 110KWx6P | 140000 | 4410x4435x7800 |
