Bolt Making Machine
Bolt Making Machine usually produce the screw bolts with the cold forming procedure. The choice of the station number depends on the size and the category of the product. The steps are straightening the wire, cutting off the wire, and making bolt blank. Depending on your demand, the formed bolt blank will be processed by thread rolling machine to form the thread.

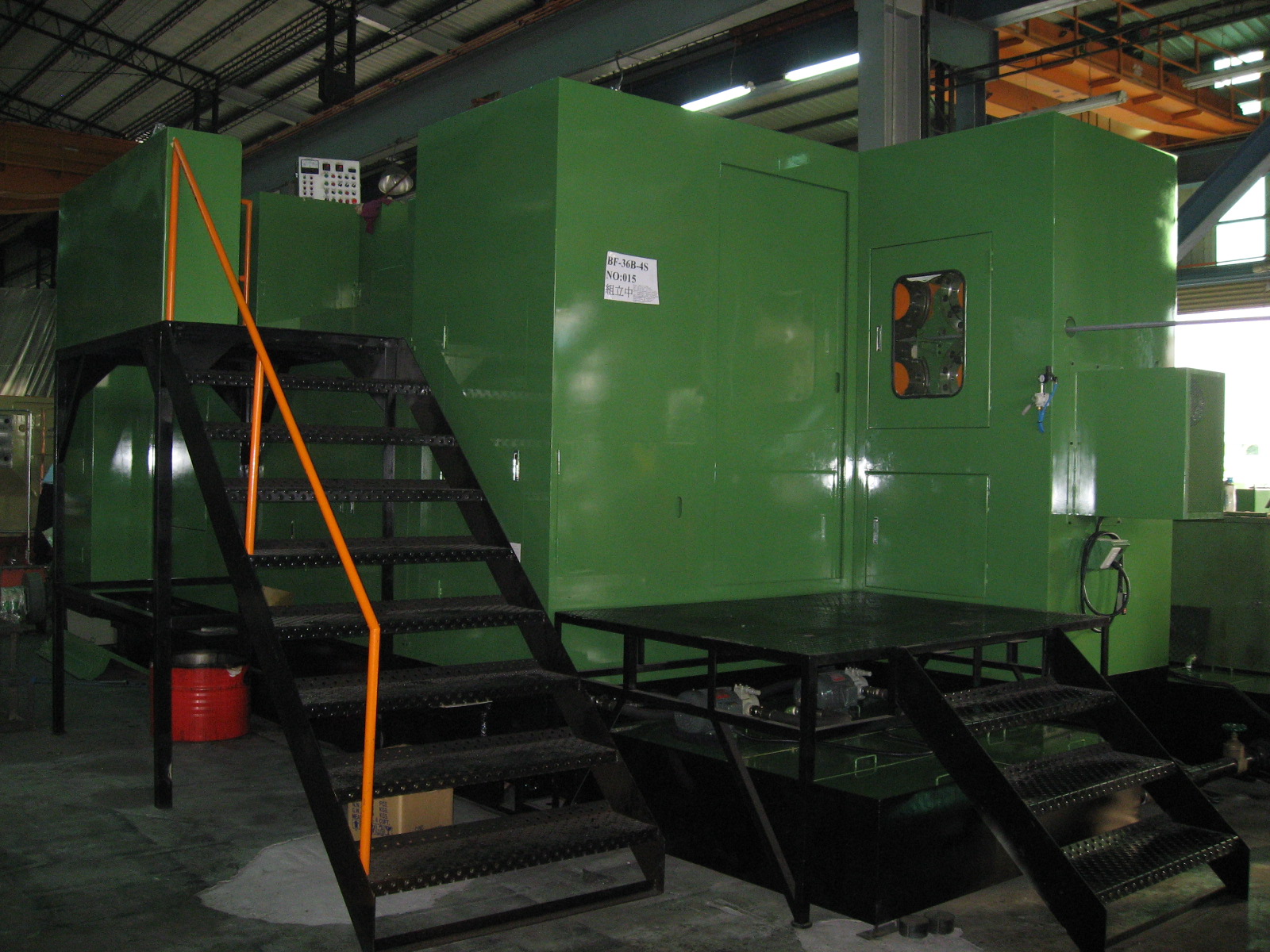

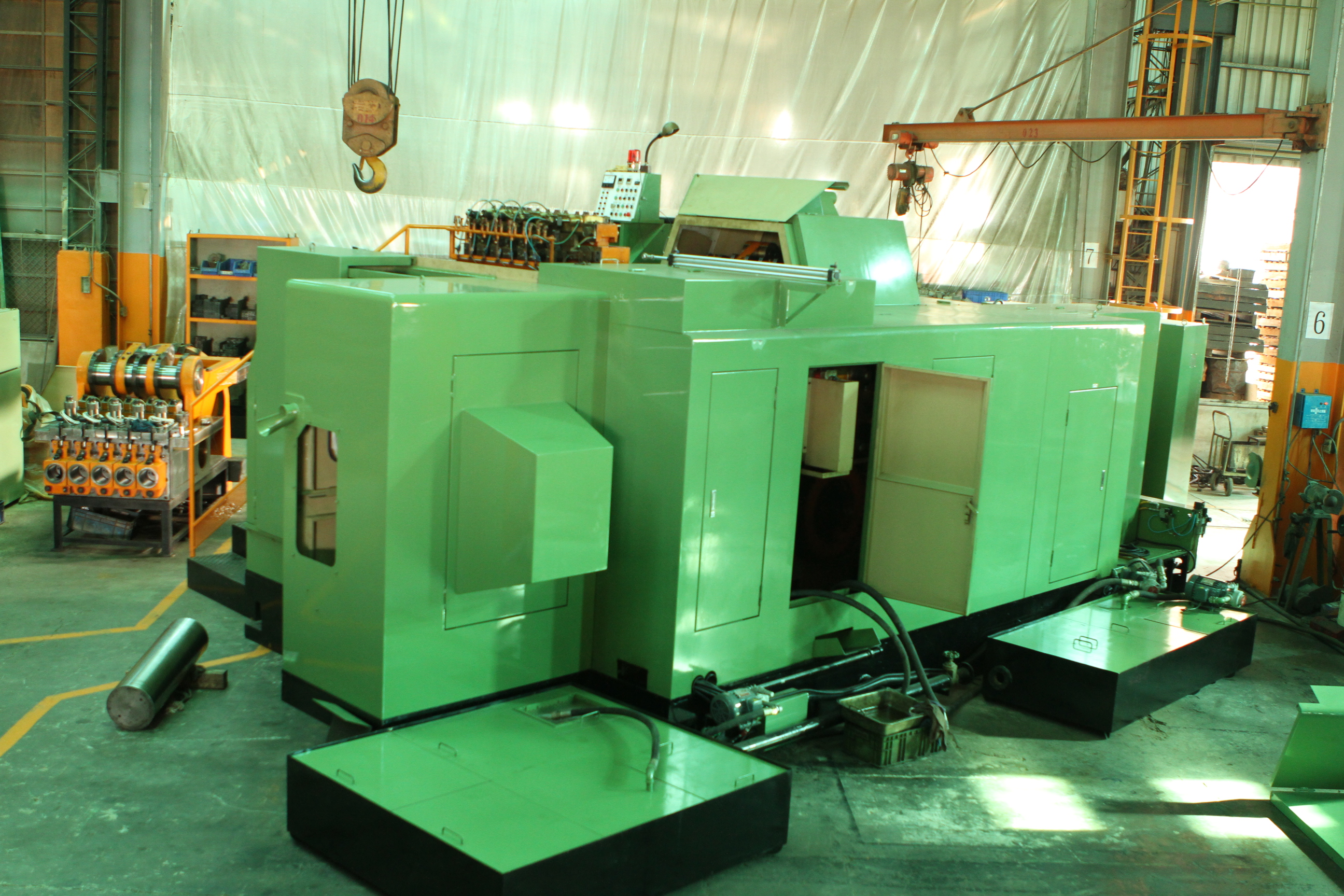

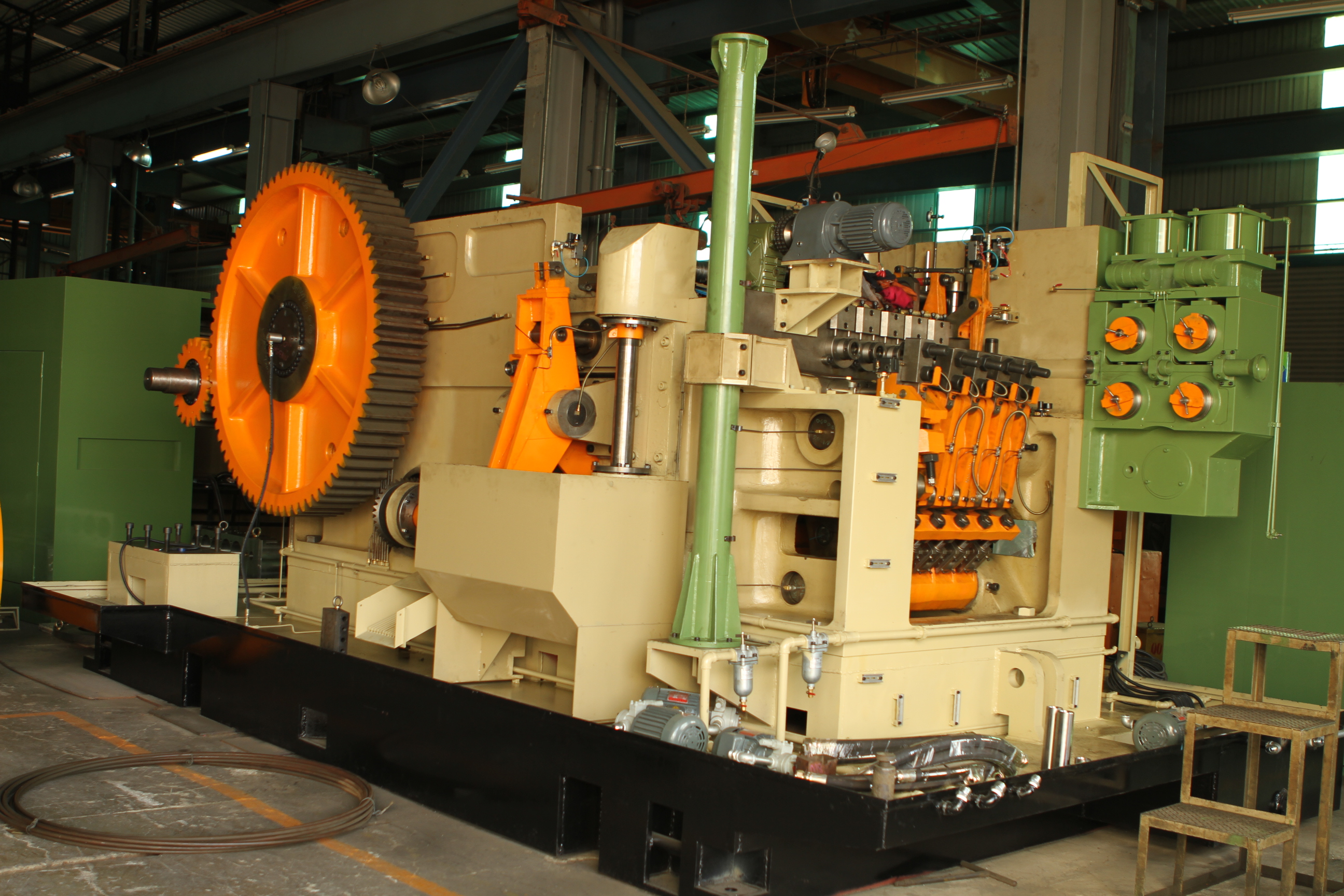

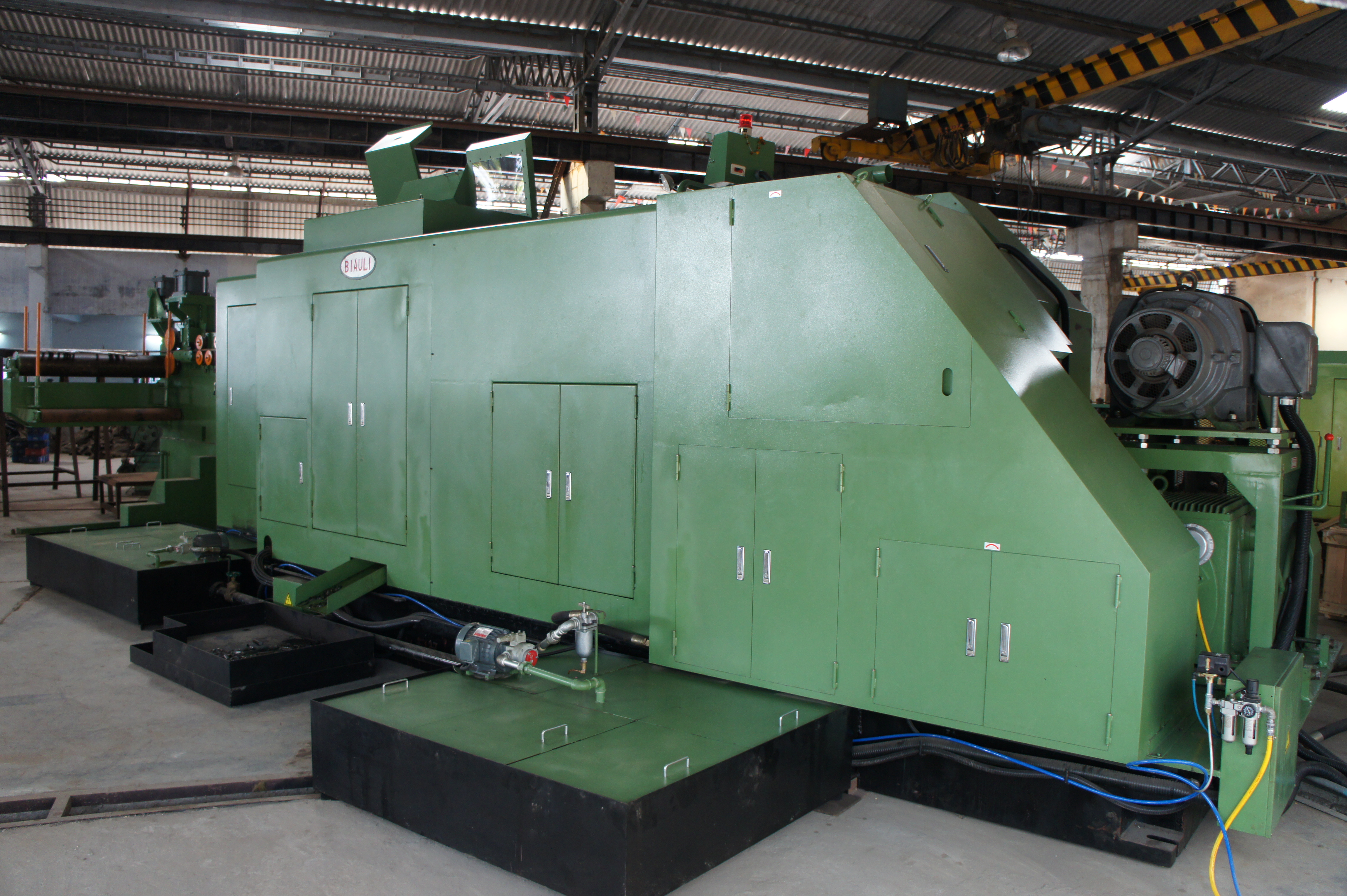

<Bolt Making Machine Presented by CYC>
<Bolt Making Machine Specification>
Following Bolt Making Machine Specification is only for your reference. For more information, please kindly download our catalog.
3 Station Bolt Making Machine BF-Series
| Model | Max. Cut-Off Ø (mm) | Max. Cut-Off Length (mm) | Max. Kick-out Length (mm) | Max. Punch Kick-out Length (mm) | Cut-of Quill (Dia. X Length) (mm) | Main Die (Dia. X Length) (mm) |
|---|---|---|---|---|---|---|
| BF7B-3S | 5 | 55 | 45 | 10 | 20x30 | 38x60 |
| BF10B-3S | 8 | 70 | 55 | 12 | 28x46 | 50x65 |
| BF13B-3S | 10 | 94 | 70 | 16 | 35x56 | 60x85 |
| BF13B-3SL | 10 | 130 | 115 | 30 | 38x79 | 70x135 |
| BF17B-3S | 12 | 105 | 80 | 20 | 40x66 | 70x95 |
| BF17B-3SL | 12 | 180 | 175 | 35 | 40x80 | 80x185 |
| BF19B-3S | 15 | 140 | 105 | 25 | 46x80 | 80x123 |
| BF19B-3XL | 15 | 240 | 230 | 40 | 46x80 | 93x240 |
| BF19B-3SUL | 15 | 350 | 310 | 60 | 65x110 | 93x350 |
| BF24B-3S | 18 | 185 | 175 | 30 | 60x100 | 100x190 |
| BF30B-3S | 23 | 260 | 220 | 35 | 75x120 | 125x240 |
| BF36B-3S | 29 | 260 | 220 | 35 | 90x140 | 160x240 |
| BF50B-3S | 44 | 380 | 360 | 60 | 138x165 | 230x390 |
| Model | Punch Hole(Dia. X Length)(mm) | Ram Stroke(mm) | Forging Power(ton) | Products | Max.Output(pcs/min) | Main Motor(hp) | Approx.Weight(kg) | |
|---|---|---|---|---|---|---|---|---|
| Size | Max Length(Hex)(mm) | |||||||
| BF7B-3S | 32x60 | 100 | 15 | 3/16"(M4) | 40 | 300 | 7 1/2 | 3500 |
| BF10B-3S | 40x77 | 120 | 20 | 1/4"(M6) | 50 | 250 | 10 | 6500 |
| BF13B-3S | 45x87 | 140 | 40 | 5/16"(M8) | 65 | 210 | 15 | 9000 |
| BF13B-3SL | 45x111 | 200 | 50 | 5/16"(M8) | 100 | 180 | 20 | 13000 |
| BF17B-3S | 50x102 | 160 | 70 | 3/8"(M10) | 75 | 180 | 20 | 13000 |
| BF17B-3SL | 50x132 | 250 | 75 | 3/8"(M10) | 150 | 150 | 30 | 18000 |
| BF19B-3S | 60x121 | 200 | 100 | 1/2"(M12) | 100 | 150 | 40 | 20000 |
| BF19B-3XL | 60x200 | 340 | 120 | 1/2"(M12) | 200 | 115 | 50 | 35000 |
| BF19B-3SUL | 65x192 | 460 | 160 | 1/2"(M12) | 300 | 70 | 75 | 43000 |
| BF24B-3S | 75x185 | 280 | 160 | 5/8"(M16) | 150 | 100 | 75 | 43000 |
| BF30B-3S | 90x197 | 360 | 220 | 3/4"(M20) | 200 | 80 | 100 | 58000 |
| BF36B-3S | 105x197 | 220 | 320 | 1"(M24) | 200 | 70 | 125 | 66000 |
| BF50B-3S | 146x245 | 520 | 800 | 1 1/2"(M36) | 300 | 45 | 200 | 180000 |
4 Station Bolt Making Machine BF-Series
| Model | Max. Cut-Off Ø (mm) | Max. Cut-Off Length (mm) | Max. Kick-out Length (mm) | Max. Punch Kick-out Length (mm) | Cut-of Quill (Dia. X Length) (mm) | Main Die (Dia. X Length) (mm) |
|---|---|---|---|---|---|---|
| BF10B-4S | 10 | 94 | 70(80) | 16 | 28x46 | 50x85 |
| BF13B-4S | 12 | 105 | 80(90) | 20 | 35x56 | 70x95 |
| BF17B-4SL | 12 | 180 | 175 | 30 | 40x80 | 80x185 |
| BF19B-4S | 15 | 140 | 105 | 25 | 46x80 | 80x123 |
| BF19B-4SXL | 15 | 240 | 230 | 40 | 46x80 | 93x240 |
| BF19B-4SUL | 15 | 400 | 340 | 60 | 65x110 | 93x400 |
| BF24B-4S | 18 | 185 | 175 | 30 | 60x100 | 100x175(190) |
| BF30B-4S | 23 | 260 | 220 | 35 | 75x120 | 125x240 |
| BF30B-4SXL | 23 | 430 | 400 | 20,40,60 | 75x120 | 125x430 |
| BF36B-4S | 29 | 320 | 280 | 60 | 90x140 | 160x294 |
| BF45B-4S | 44 | 450 | 390 | 60 | 132x165 | 185x400 |
| Model | Punch Hole(Dia. X Length)(mm) | Ram Stroke(mm) | Forging Power(ton) | Products | Max.Output(pcs/min) | Main Motor(hp) | Approx.Weight(kg) | |
|---|---|---|---|---|---|---|---|---|
| Size | Max Length(Hex)(mm) | |||||||
| BF10B-4S | 40x88 | 140 | 50 | 1/4"(M6) | 65 | 65 | 15 | 9000 |
| BF13B-4S | 45x87 | 160 | 80 | 5/16"(M8) | 75 | 75 | 20(30) | 13000 |
| BF17B-4SL | 50x132 | 250 | 85 | 3/8"(M10) | 150 | 150 | 40 | 20000 |
| BF19B-4S | 60x121 | 200 | 120 | 1/2"(M12) | 100 | 120 | 50 | 25000 |
| BF19B-4SXL | 60x200 | 340 | 140 | 1/2"(M12) | 200 | 90 | 75 | 37000 |
| BF19B-4SUL | 65x192 | 500 | 200 | 1/2"(M12) | 330 | 70 | 75 | 48000 |
| BF24B-4S | 75x165 | 280 | 200 | 5/8"(M16) | 150 | 100 | 75 | 45000 |
| BF30B-4S | 90x197 | 360 | 265 | 3/4"(M20) | 200 | 80 | 100 | 66000 |
| BF30B-4SXL | 95x250 | 560 | 360 | 3/4"(M20) | 380 | 60 | 125 | 98000 |
| BF36B-4S | 105x232 | 440 | 380 | 1"(M24) | 250 | 60 | 125 | 110000 |
| BF45B-4S | 138x240 | 800 | 520 | 1 1/2"(M36) | 360 | 40 | 200 | 210000 |
5 Station Special Bolt Making Machine BP-Series
| Model | Max.Cut-Off Ø (mm) | Max. Cut-Off Length (mm) | Max. Kick-out Length (mm) | Max. Punch Kick-out Length (mm) | Cut-of Quill (Dia. X Length) (mm) | Main Die (Dia. X Length) (mm) |
|---|---|---|---|---|---|---|
| BP10B-5S | 12 | 105 | 80(40) | 20 | 35x56 | 50x95 |
| BP13B-5S | 16 | 130 | 120(40) | 20,35,50 | 46x80 | 75x130 |
| BP19B-5S | 18 | 190 | 150(50) | 35 | 60x100 | 90x170 |
| BP24B-5S | 23 | 205 | 190(60) | 40 | 80x100 | 115x205 |
| BP30B-5S | 30 | 270 | 220(80) | 45 | 95x120 | 125x240 |
| BP33B-5S | 29 | 270 | 220(80) | 50 | 100x120 | 145x240 |
| BP36B-5S | 34 | 330 | 280(100) | 55 | 105x140 | 160x300 |
| BP41B-5S | 38 | 410 | 370(170) | 60 | 115x155 | 175x400 |
| Model | Punch Hole (Dia. X Length) (mm) | Ram Stroke (mm) | Forging Power (ton) | Max. Output (pcs/min) | Main Motor (hp) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|
| BP10B-5S | 40x95 | 160 | 60 | 150 | 20 | 13000 |
| BP13B-5S | 60x120 | 190 | 90 | 130 | 30 | 18000 |
| BP19B-5S | 60x122 | 260 | 160 | 110 | 50 | 42000 |
| BP24B-5S | 90x164 | 320 | 200 | 90 | 100 | 58000 |
| BP30B-5S | 90x220 | 360 | 300 | 70 | 125 | 80000 |
| BP33B-5S | 110x250 | 360 | 440 | 70 | 150 | 100000 |
| BP36B-5S | 120x290 | 440 | 500 | 60 | 175 | 130000 |
| BP41B-5S | 130x290 | 520 | 600 | 50 | 175 | 180000 |
6 Station Special Bolt Making Machine BP-Series
| Model | NO. of Fingers | Max. Cut-Off Ø (mm) | Cut-Off Length (Min./Max.) (mm) | Kick-out Length (Min./Max.) (mm) | Max. Punch Kick-Out Length (mm) | Cut-off Quill (Dia. X Length) (mm) | Main Die (Dia. X Length) (mm) |
|---|---|---|---|---|---|---|---|
| BP13B-6S | 7 | 16 | 15 / 135 | 120 / 40 | 20 / 35 / 50 | 46x80 | 75x130 |
| BP19B-6S | 7 | 23 | 20 / 165 | 150 / 50 | 20 / 35 / 50 | 68x100 | 100x165 |
| BP24B-6S | 7 | 30 | 30 / 200 | 160 / 80 | 20 / 40 / 60 | 95x120 | 116x184 |
| BP30B-6S | 7 | 34 | 30 / 270 | 220 / 80 | 25 / 50 / 75 | 100x120 | 124x240 |
| BP33B-6S | 7 | 38 | 45 / 330 | 280 / 100 | 25 / 55 / 80 | 105x140 | 145x300 |
| BP36B-6S | 7 | 41 | 50 / 410 | 370 / 170 | 30 / 60 / 90 | 115x155 | 160x400 |
| Model | Punch Hole (Dia. X Length) (mm) | Ram Stroke (mm) | Forging Power (ton) | Max. Output (pcs/min) | Main Motor (hp) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|
| BP13B-6S | 60x120 | 190 | 145 | 120 | 40 | 25000 |
| BP19B-6S | 75x142 | 260 | 230 | 90 | 75 | 52000 |
| BP24B-6S | 95x176 | 320 | 320 | 90 | 100 | 65000 |
| BP30B-6S | 100x220 | 360 | 440 | 70 | 125 | 100000 |
| BP33B-6S | 110x250 | 440 | 500 | 60 | 150 | 130000 |
| BP36B-6S | 120x290 | 520 | 600 | 50 | 175 | 180000 |
