Multi-Heading Machine
.JPG)
.JPG)
.png)
Taiwan Multi-Die Heading Machine is suitable for complicated work pieces. It is very cost-effective and with high-precision Manufacturing. For screws with large volume or components that 1 die 2 blow Heading Machine is not sufficient. Multi-Die Heading Machine has been used to decrease changeover times to run large production more profitably.

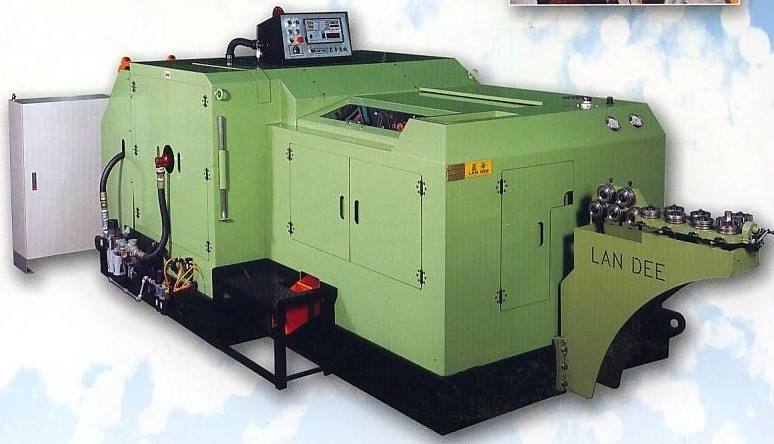

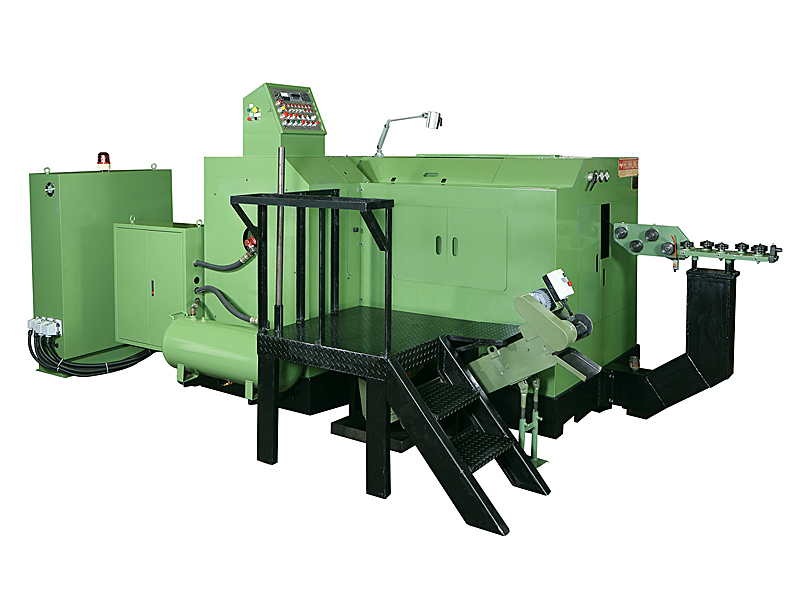

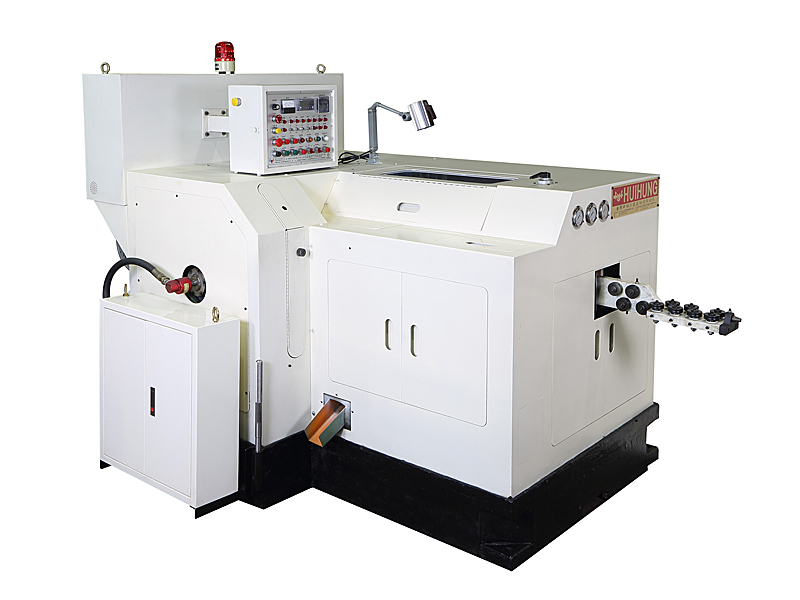

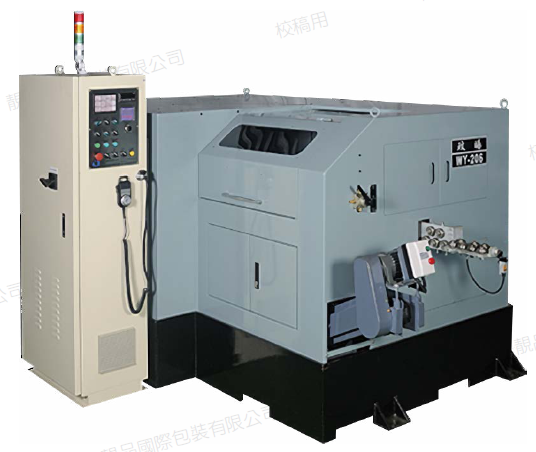

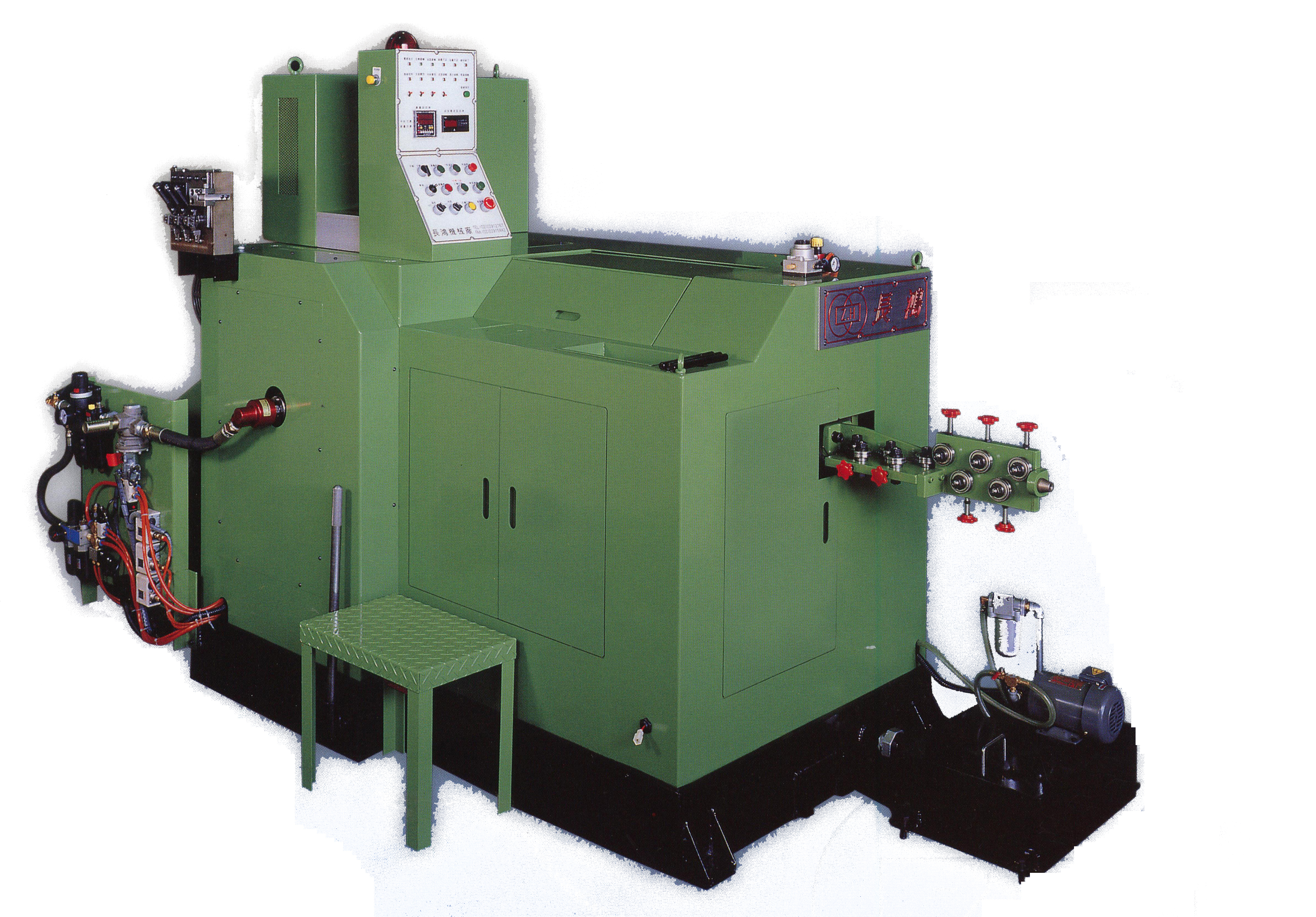

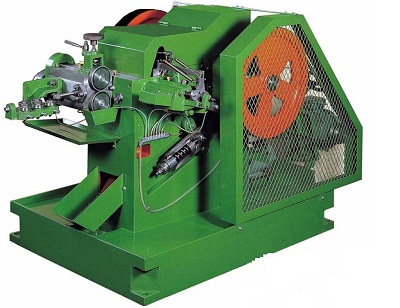

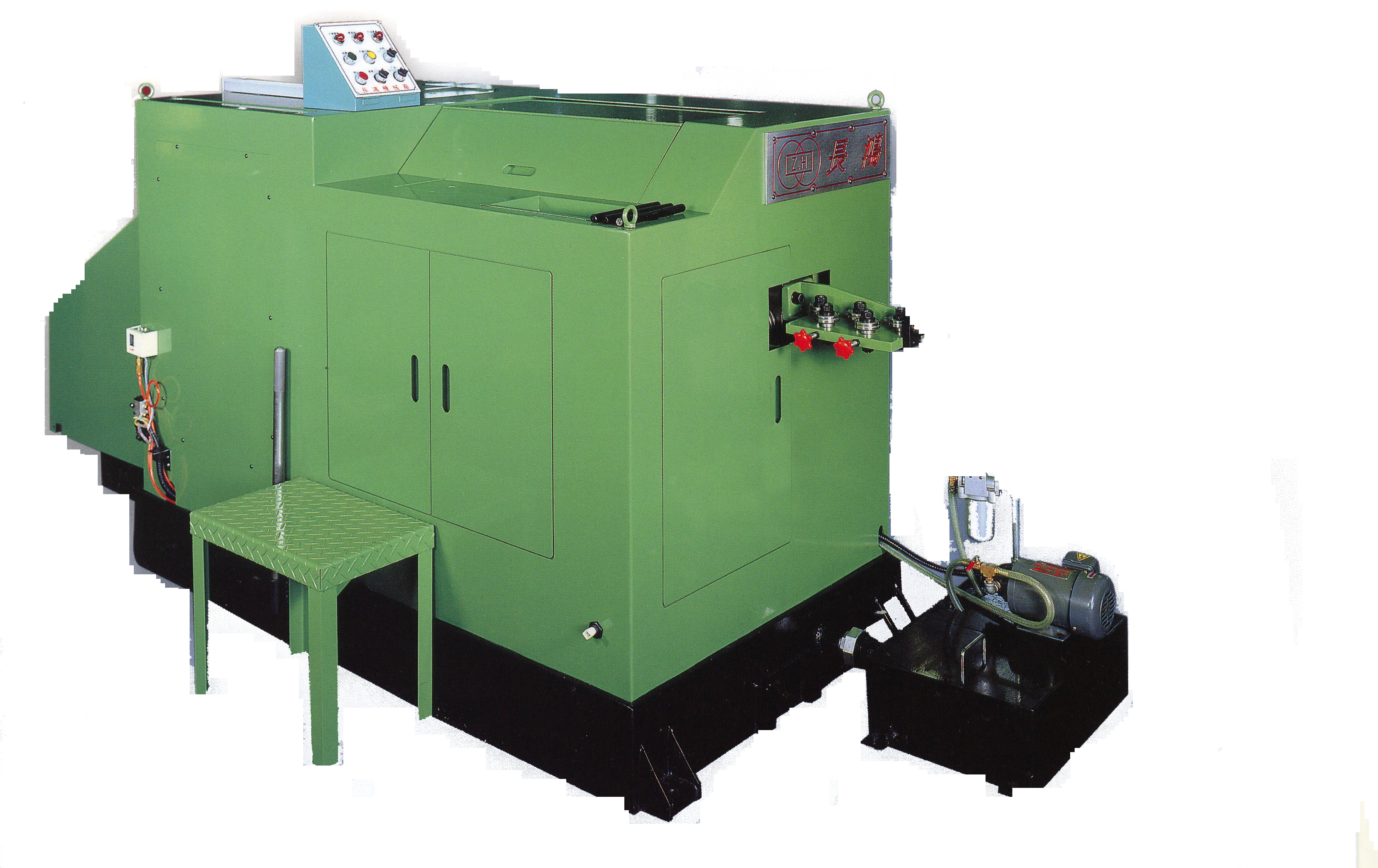

<Multi-Heading Machine Presented by CYC>
<Mulit-Die Heading Machine Specification>
Following Heading Machine Specification is only for your reference. For more information, please kindly download our catalog.
3 Die 6 Blow Screw Heading Machine
| Model | Max. Cut-Off Ø (mm) | Max. Cut-Off Length (mm) | Production Rate (pcs/min) | Main Die Ø (mm) | Cut-Off Die Ø (mm) | Main Motor (hp) | Machine Size (L x W x H) (cm) | Net Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| HH-2410D | 4 | 25 | 80-120 | 34.5x70 | 19 | 2 | 245x100x100 | 1300 |
| HH-2410S | 4 | 25 | 80-120 | 34.5x70 | 19 | 2 | 268x100x100 | 1500 |
| HH-2415D | 5 | 35 | 60-100 | 46x85 | 19 | 3 | 272x123x114 | 1900 |
| HH-2415S | 5 | 35 | 60-100 | 46x85 | 19 | 3 | 295x123x114 | 2050 |
| HH-2420D | 7 | 45 | 50-70 | 50x97 | 28 | 5 | 323x154x142 | 3500 |
| HH-2420S | 7 | 45 | 50-70 | 50x97 | 28 | 5 | 345x154x142 | 3900 |
| HH-2425D | 9 | 75 | 40-60 | 58x127 | 32 | 7.5 | 368x178x161 | 5600 |
| HH-2425S | 9 | 75 | 40-60 | 58x127 | 32 | 7.5 | 383x178x161 | 6000 |
| HH-2430D | 13 | 120 | 40-50 | 80x150 | 40 | 15 | 490x209x184 | 10000 |
| HH-2430S | 13 | 120 | 40-50 | 80x150 | 40 | 15 | 508x209x189 | 10950 |
| HH-2420D | 15 | 175 | 35-50 | 80x220 | 45 | 25 | 461x199x196 | 13700 |
| HH-2420S | 15 | 175 | 35-50 | 80x220 | 45 | 25 | 474x199x199 | 14300 |
2 Die 4 Blow Screw Heading Machine
| Model | Max. Cut-Off Ø (mm) | Max. Cut-Off Length (mm) | Production Rate (pcs/min) | Main Die Ø (mm) | Cut-Off Die Ø (mm) | Main Motor (hp) | Machine Size (L x W x H) (cm) | Net Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| HH-3620T | 7 | 60 | 40-60 | 50x97 | 28 | 7.5 | 319x162x140 | 4400 |
| HH-3620S | 7 | 60 | 40-60 | 50x97 | 28 | 7.5 | 319x162x140 | 4900 |
| HH-3625T | 9 | 95 | 40-50 | 58x127 | 32 | 10 | 369x183x160 | 6750 |
| HH-3625S | 9 | 95 | 40-50 | 58x127 | 32 | 10 | 369x183x161 | 7200 |
| HH-3630T | 13 | 125 | 30-50 | 80x150 | 40 | 20 | 390x192x180 | 11500 |
| HH-3630S | 13 | 125 | 30-50 | 80x150 | 40 | 20 | 390x192x180 | 12000 |
| HH-3640TL | 16 | 240 | 25-45 | 80x280 | 45 | 30 | 480x213x173 | 19000 |
| HH-3640TLS | 16 | 240 | 25-45 | 80x240 | 45 | 30 | 480x213x173 | 20000 |
