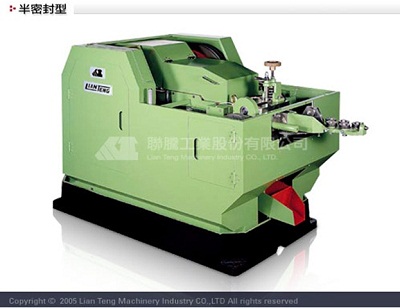

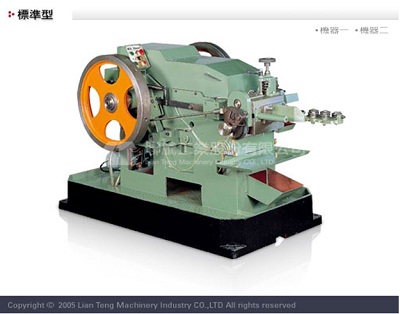

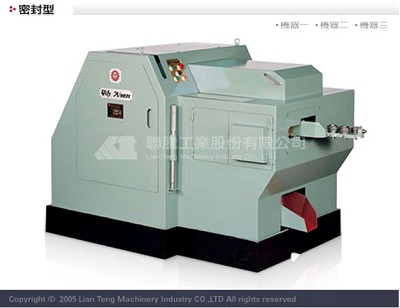

Semi Tubular Rivet Machine
Semi Tubular Rivet Machine can make not only the semi tubular rivet nut also the semi tubular screw. The machine will feed wire, cut the wire and press to form the head and the tail of the product by the punches. Our machine is featured on the production speed, product performance, machine quality and long lifetime.
<Semi-Tubular Rivet Machine Presented by CYC>
<Semi Tubular Rivet Machine Specification>
Following Semi Tubular Rivet Machine Specification is only for your reference. For more information, please kindly download our catalog.
2 Die 2 Blow Semi-Tubular Rivet Machine/Semi- Tubular Making Machine
| Model | Capacity(mm) | Max. Product Speed(pcs/min) | Main Motor(hp) | PKO(mm) | Heading Die Ø(mm) | Punch Ø (mm) | Cut-Off Die Ø (mm) | Cutter (mm) | Stroke (mm) | Machine Dimensions (L x W x H) (cm) | Net Weight (kgs)" | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-3015 | Screw | 5x60 | 100-200 | 7 1/2 | 10 | 38x34x100 | 31x95 | 19x40 | 11x75 | 120 | 270x136x191 | 3000 |
| Blind Rivet | 5x25 | |||||||||||
| Semi-Tubular | 5x50 | |||||||||||
| BF-2025 | Screw | 8x110 | 80-200 | 10 | 20 | 66x60x130L | 42x125L | 38x50 | 16 | 200 | 325x168x168 | 6800 |
| Semi-Tubular | 50-140 | |||||||||||
3 Die 3 Blow Semi-Tubular Rivet Machine/Semi- Tubular Making Machine
| Model | Capacity(mm) | Max. Product Speed(pcs/min) | Main Motor(hp) | PKO(mm) | Heading Die Ø(mm) | Punch Ø (mm) | Cut-Off Die Ø (mm) | Cutter (mm) | Stroke (mm) | Machine Dimensions (L x W x H) (cm) | Net Weight (kgs)" | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-3015 | Screw | 5x60 | 100-200 | 7 1/2 | 10 | 38x34x100 | 31x95 | 19x40 | 11x75 | 120 | 270x136x191 | 3000 |
| Blind Rivet | 5x25 | |||||||||||
| Semi-Tubular | 5x50 | |||||||||||
| BF-3020 | Screw | 6.4x100 | 100-200 | 10 | 20 | 48x42x130 | 38x120 | 32 | 16 | 200 | 325x168x168 | 6800 |
