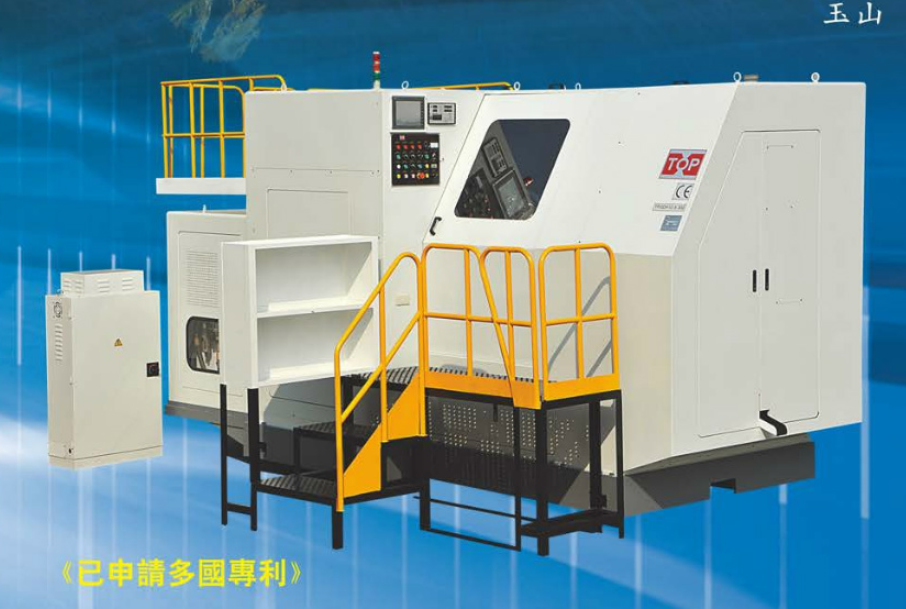

Open Die Header
.png)
Open Die Header can form the product with high deformation load or massive dimensions. It procedures of forging a metal piece or material. Heated metal between a top and bottom die is formed by using force. The term open die comes from the work piece not being enclosed.
<Open Die Header Presented by CYC>
<Open Die Header Specification>
Following Open Die Header Specification is only for your reference. For more information, please kindly download our catalog.
Open Die Header
| Max. Wire Ø | Max. Blank Length (mm) | Punch Hole (mm) | Feeding Mechanism | Production Rate (pcs/min) | Auto Feeding Length (mm) | Main Drive Motor (hp) | Machine Dimensions (L x W x H) (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 3-5 | 25-75 | 31x75 | Feeding Vibrator (Single Direction, A,B or C type depends on the actual product) | 50-90 | 25-75 | 3 | 1895x1120x1670 | 2100 |
| 4-6 | 25-200 | 38x120 | 30-55 | 25-150 | 5 | 2870x1280x2170 | 4000 | |
| 6-8 | 25-250 | 42x120 | 20-50 | 25-150 | 7.5 | 3150x1550x2190 | 6800 | |
| 6-10 | 25-350 | 54x170 | 15-35 | 25-200 | 25 | 4450x1965x2650 | 15000 | |
| 8-16 | 25-400 | 74x200 | 15-25 | 25-200 | 40 | 6000x2480x3550 | 33000 |
