Nut Tapping Machine
Nut Tapping Machine is divided into three types by its drive power, including Pneumatic, Electric and Hydraulic tapping machine. Before tapping the thread, the process also requires a drilling machine to drill the hole in the blank. Nut Tapping Machine then machines the internal threads on inner side of the holes of the nut with different thread profiles.

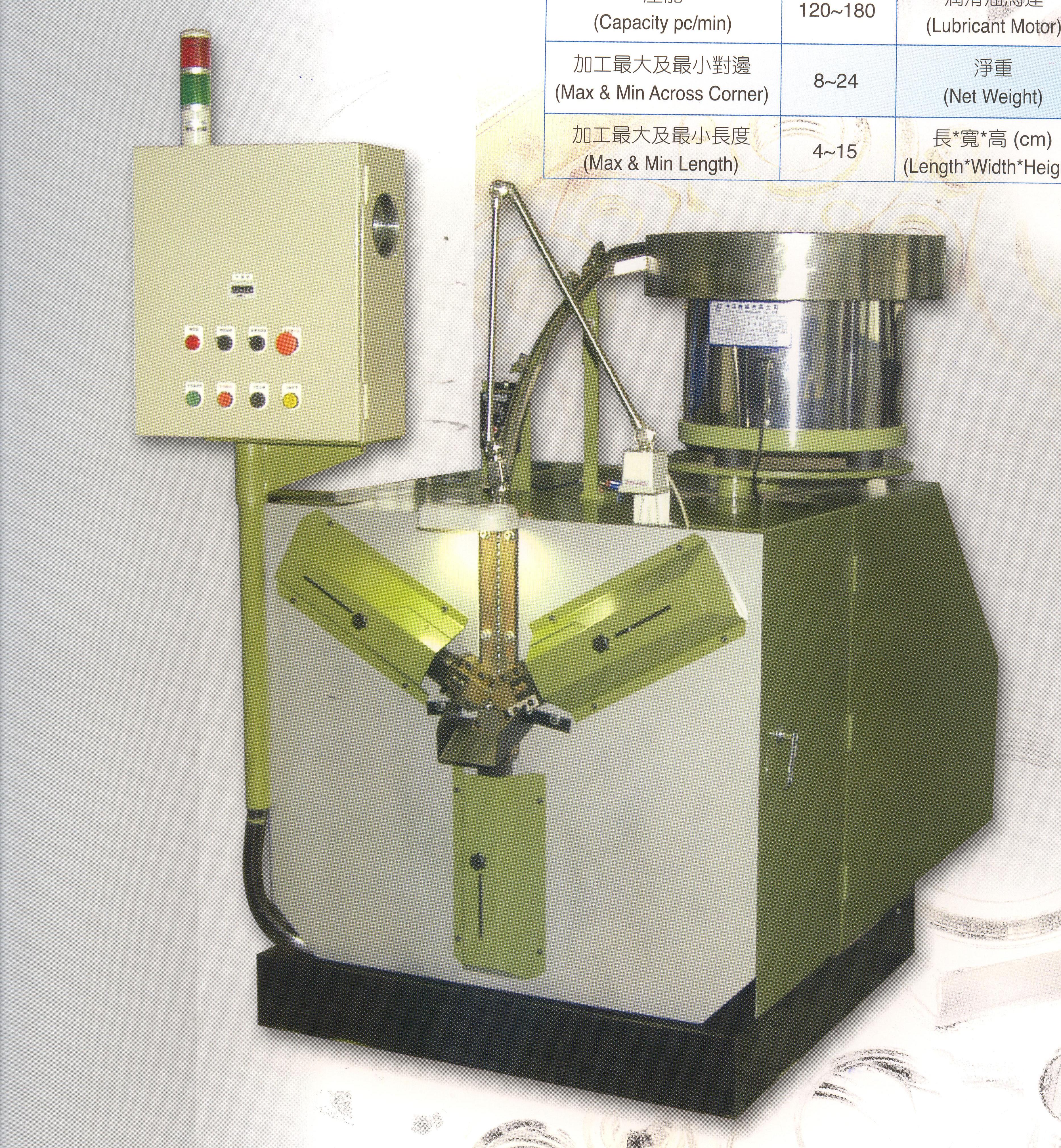

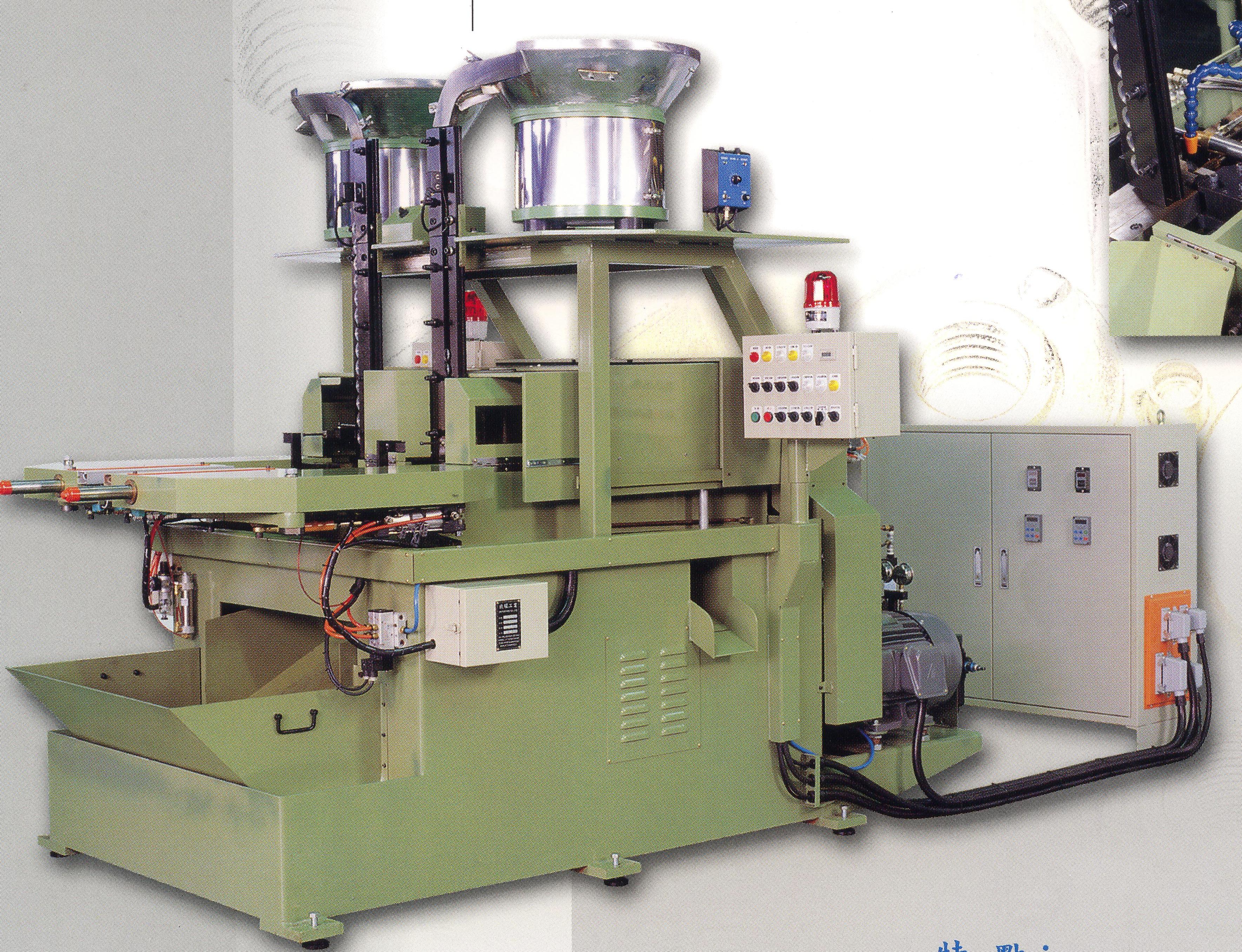

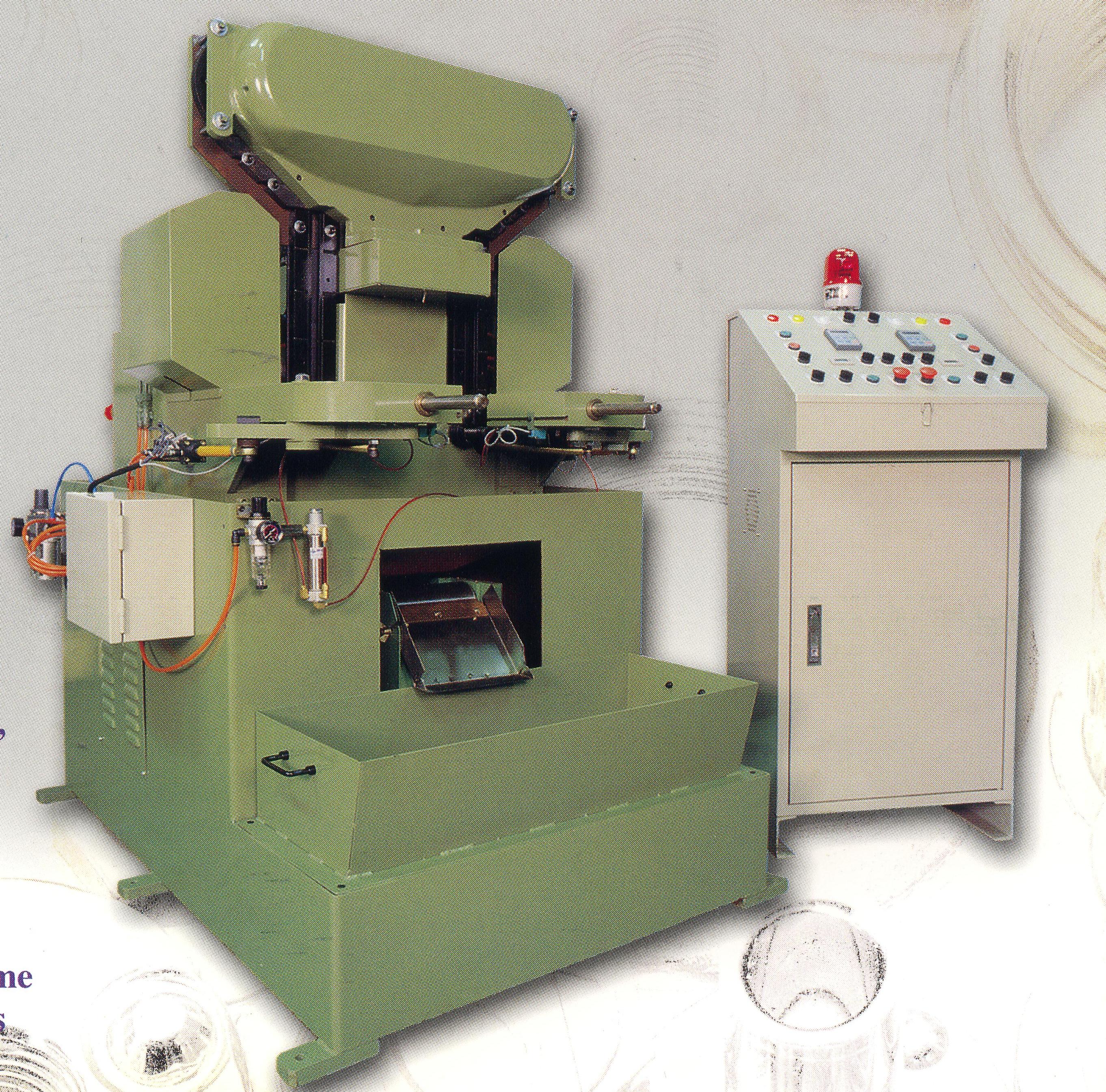

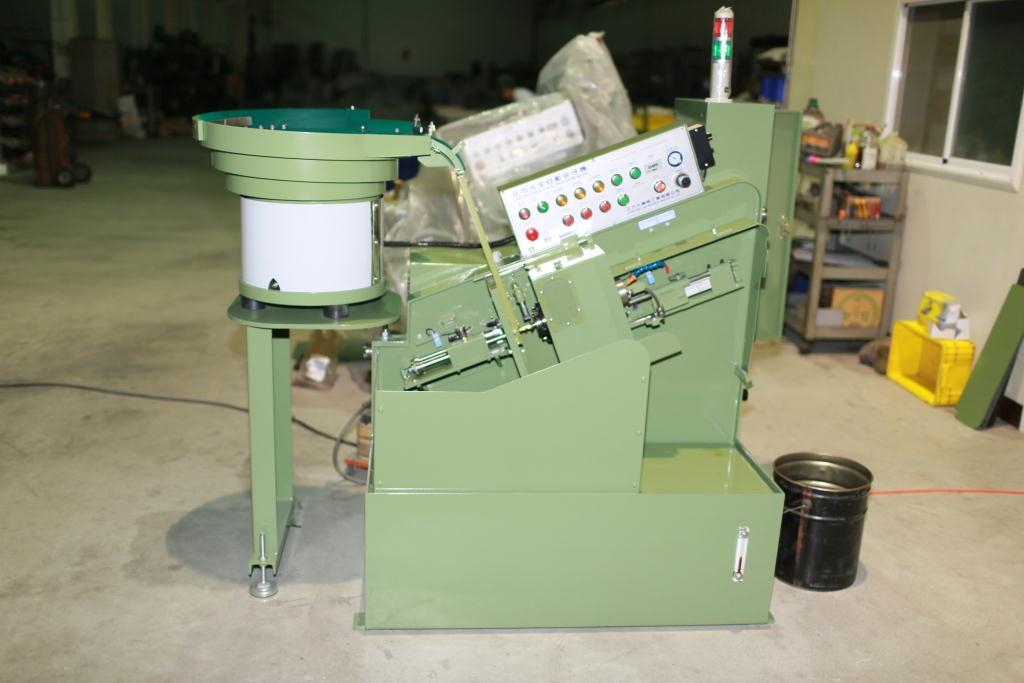

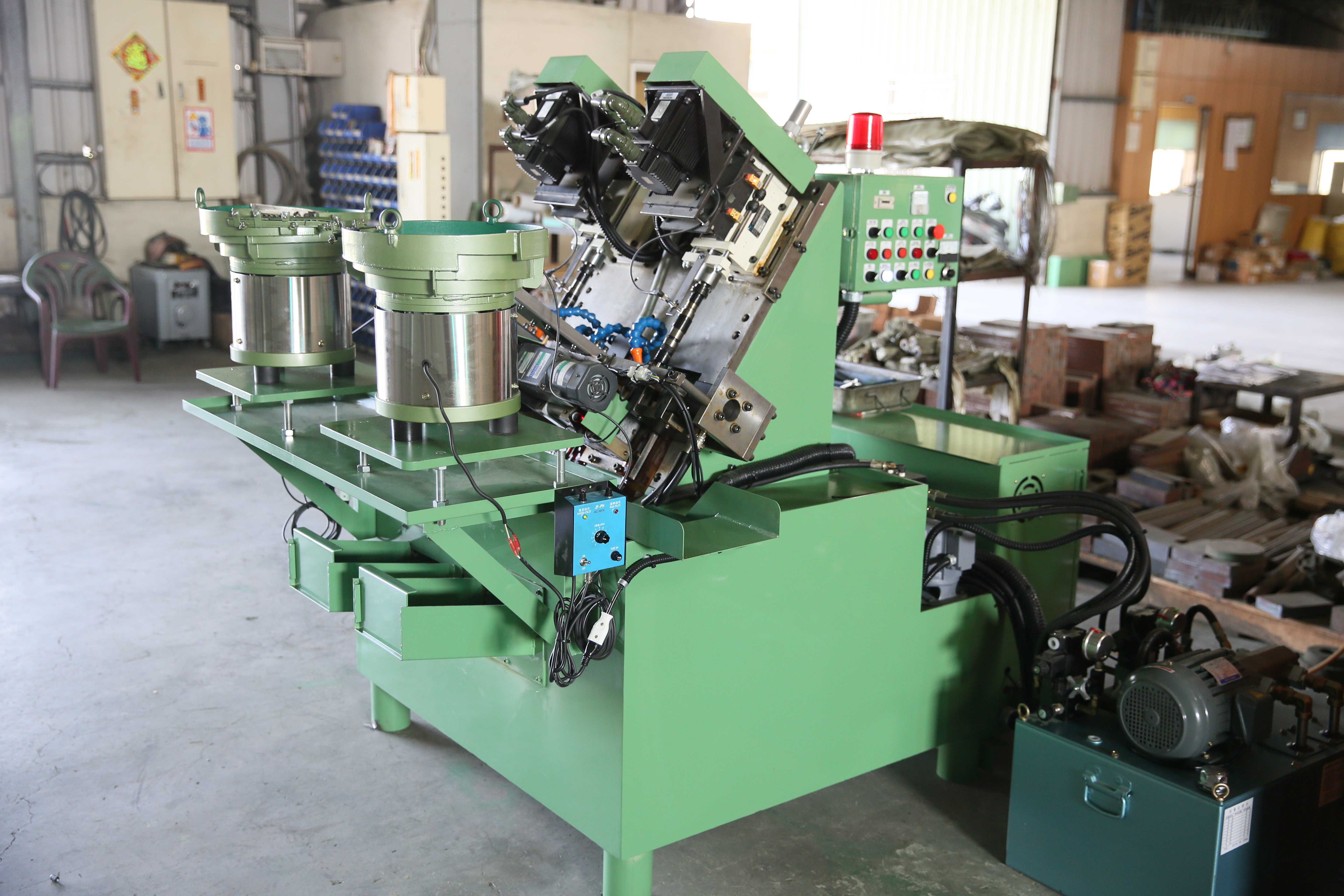

<Nut Tapping Machine Presented by CYC>
<Nut Tapping Machine Specification>
Following Nut Tapping Machine Specification is only for your reference. For more information, please kindly download our catalog.

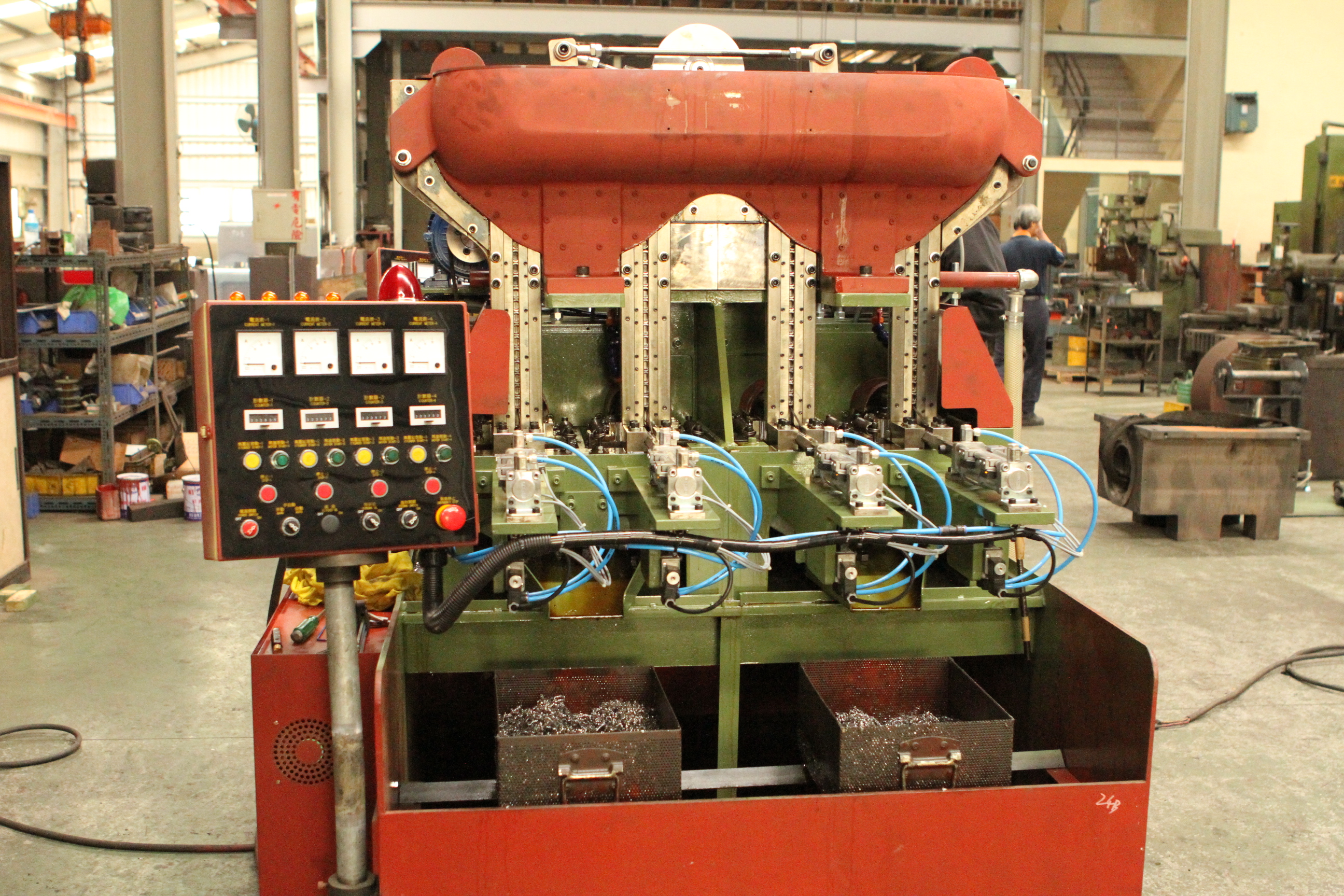

FDT-Nut Tapping Machine
| Model | Spindle Number | Product Range | Tap Length x R (mm) | Output (pcs/min) | Net Weight (kg) | Dimension (L x W x H) (cm) |
|---|---|---|---|---|---|---|
| FTM08B | 4 | M3-M5 #3 - #8 | M125 x 20R | 600 - 500 | 850 | 120x165x185 |
| FTM13B | 4 | M5-M8 #8 - 5/16 | M215 x 25R | 400 - 200 | 900 | 140x166x181 |
| FTM19B | 4 | M8-M12 5/16 - 1/2 | M300 x 30R | 320 - 200 | 980 | 156x181x186 |
| FTM24B | 4 | M12-M16 1/2 - 5/8 | M320 x 35R | 180 - 120 | 1700 | 153x180x185 |
| FTM32B | 4 | M16-M22 5/8 - 7/8 | M400 x 45R | 140 - 90 | 3800 | 187x223x213 |
| FTM38B | 4 | M18-M24 3/4 - 1 | M480 x 55R | 120 - 70 | 4600 | 215x235x248 |
| FTM46B | 2 | M24-M30 1 - 1 1/4 | M600 x 70R | 45 - 26 | 3850 | 224x186x248 |
| FTM60B | 2 | M30-M39 1 1/4 - 1 1/2 | M606 x 85R | 20 - 10 | 3900 | 224x186x248 |

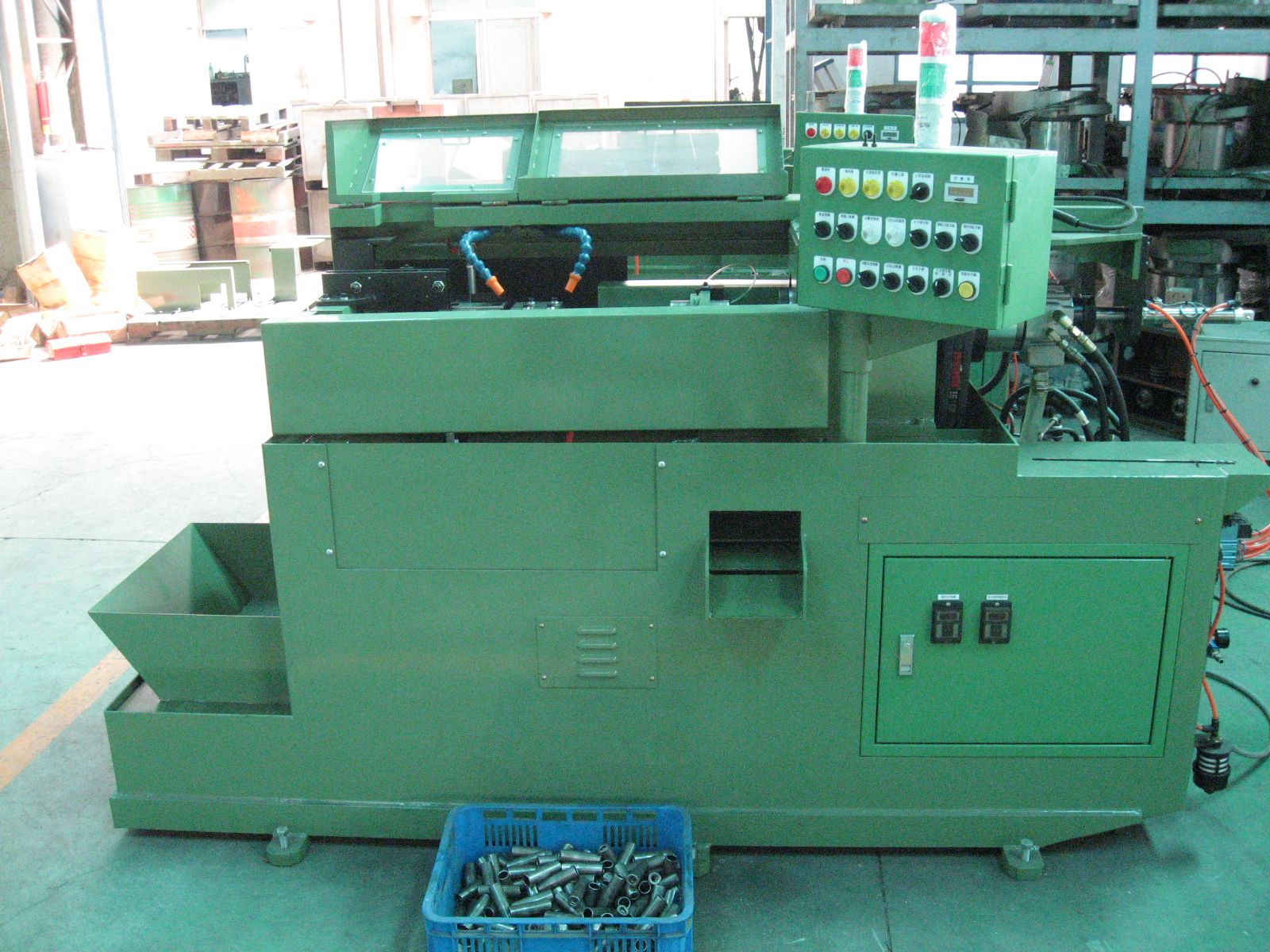

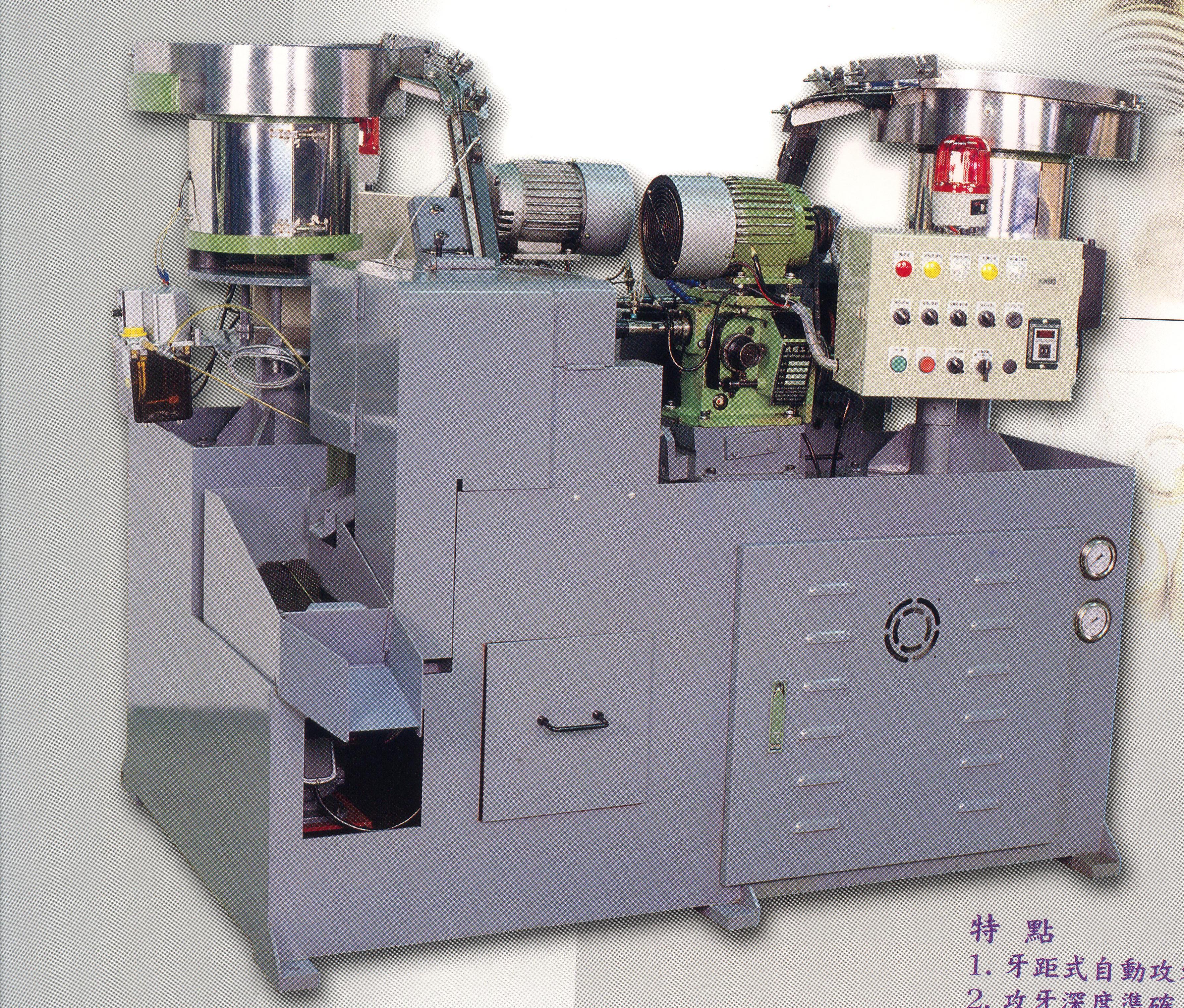

Pitch-Lead Type Horizontal Nut Tapping Machine – RT Series
| Normal Motor Model | Spindle Number | Nut Thread Diameter | Nut Length (mm) | Weight (kg) | Dimension (L x W x H) (mm) |
|---|---|---|---|---|---|
| RT12 | 2 | M5-M12 | 6-60 | 1400 | 1870x1200x2049 |
| RT20 | 1 | M12-M20 | 4-50 | 1500 | 2120x1400x2050 |
| RT30 | 1 | M20-M30 | 4-50 | 1500 | 2120x1400x2050 |

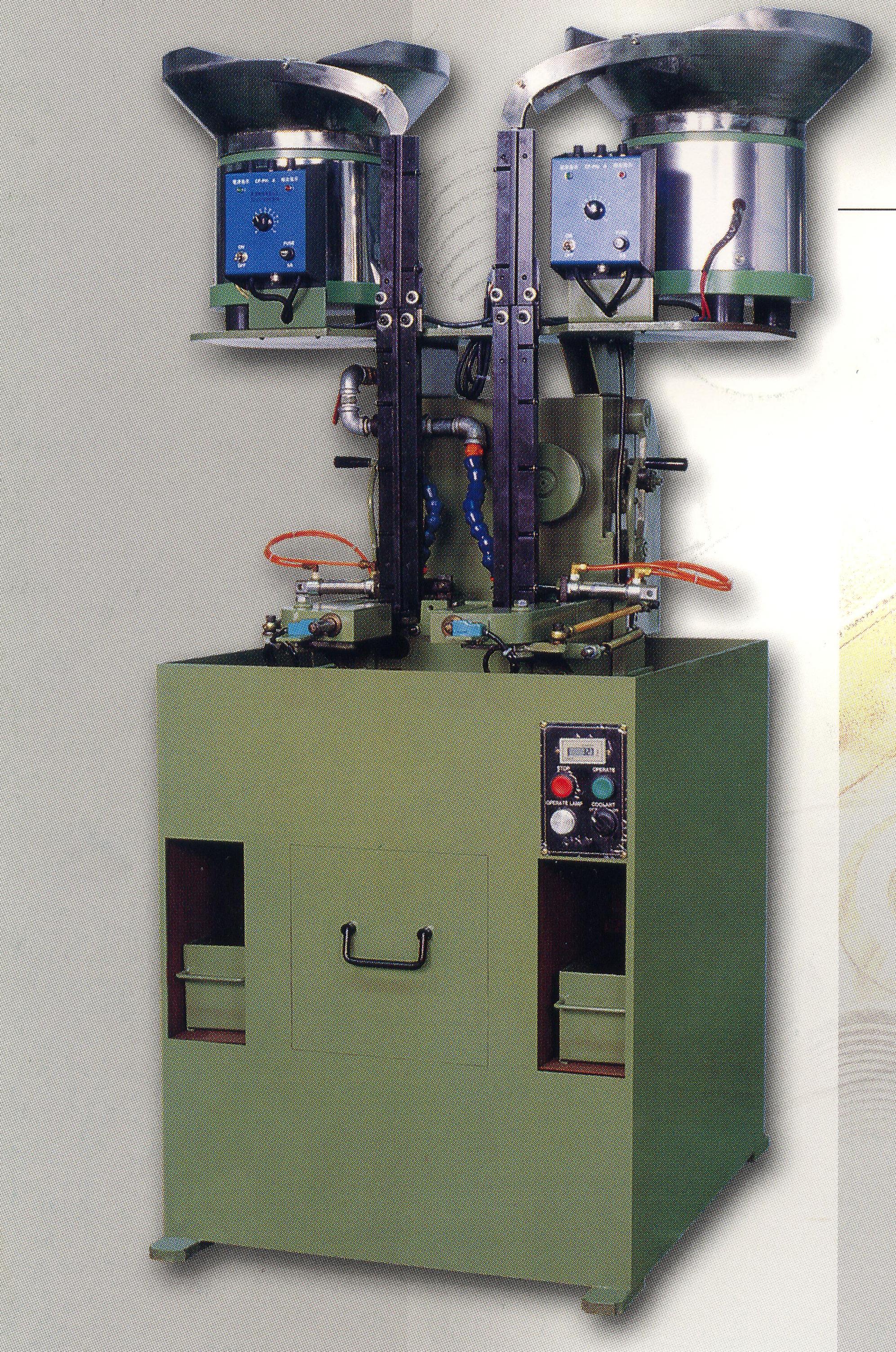

Pitch-Lead Type Vertical Nut Tapping Machine – TRT Series
| Normal Motor Model | Spindle Number | Nut Thread Diameter | Nut Length (mm) | Weight (kg) | Dimension (L x W x H) (mm) |
|---|---|---|---|---|---|
| TRT12 | 1 | M5-M12 | 6-60 | 800 | 1250x1200x1850 |
| TRT20 | 1 | M10-M20 | 6-75 | 1025 | 1250x1200x1950 |
| TRT30 | 1 | M12-M30 | 10-90 | 1550 | 1460x1675x2000 |
